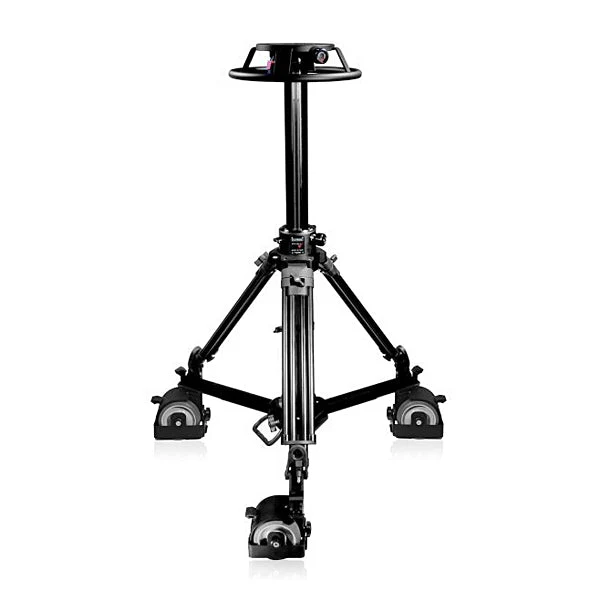

CARTONI P40 HP Pedestal

The P40 HP Pedestal System is a professional-grade support solution built for studio, newsroom, and OB broadcast applications. Designed to handle payloads up to 45 kg (100 lbs), it delivers on-shot stability, vertical precision, and fluid motion control in dynamic production environments.

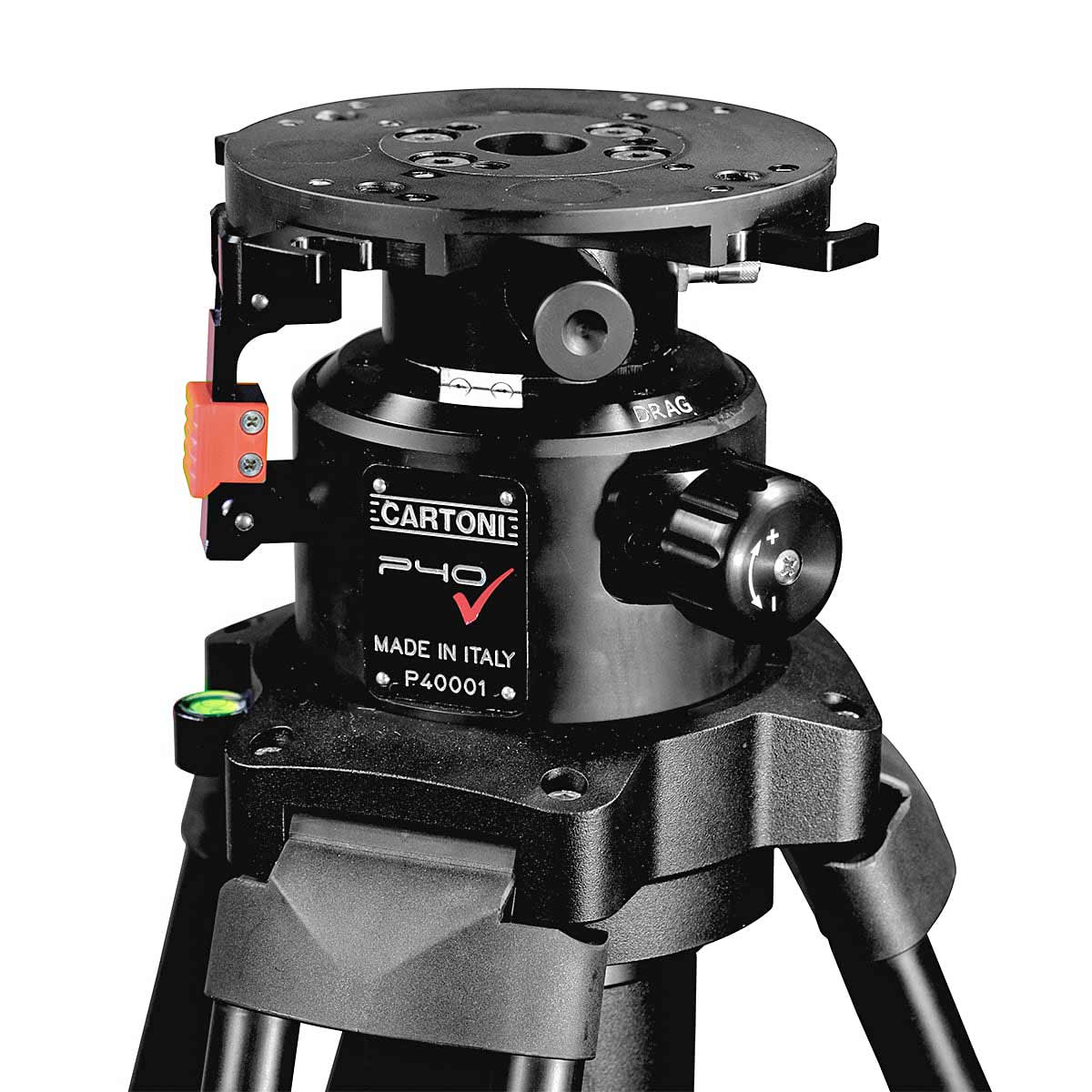

Its two-stage pneumatic column offers a smooth 47 cm vertical stroke, with a secure clamp lock, safety valve, air pressure gauge, and a hexagonal design for precise camera tracking. The integrated dolly base features three dual 125mm wheels with foot brakes, cable guards, and six directional lock positions—perfect for tight studio layouts and live camera moves.

Fast to assemble and easy to operate, the P40 HP includes a quick-release steering wheel, modular platform, and flat head mount, with optional 100mm bowl support via the AH856 adapter. Compatible with 620 mm track systems and skating wheel assemblies, it’s ideal for professional PTZ, ENG, or studio cameras.

Key Features:

• Payload capacity: up to 45 kg (100 lbs)

• Pneumatic center column with 47 cm vertical stroke

• Hexagonal design with pressure gauge, brake & safety valve

• Dolly with dual wheels, cable guards & directional locks

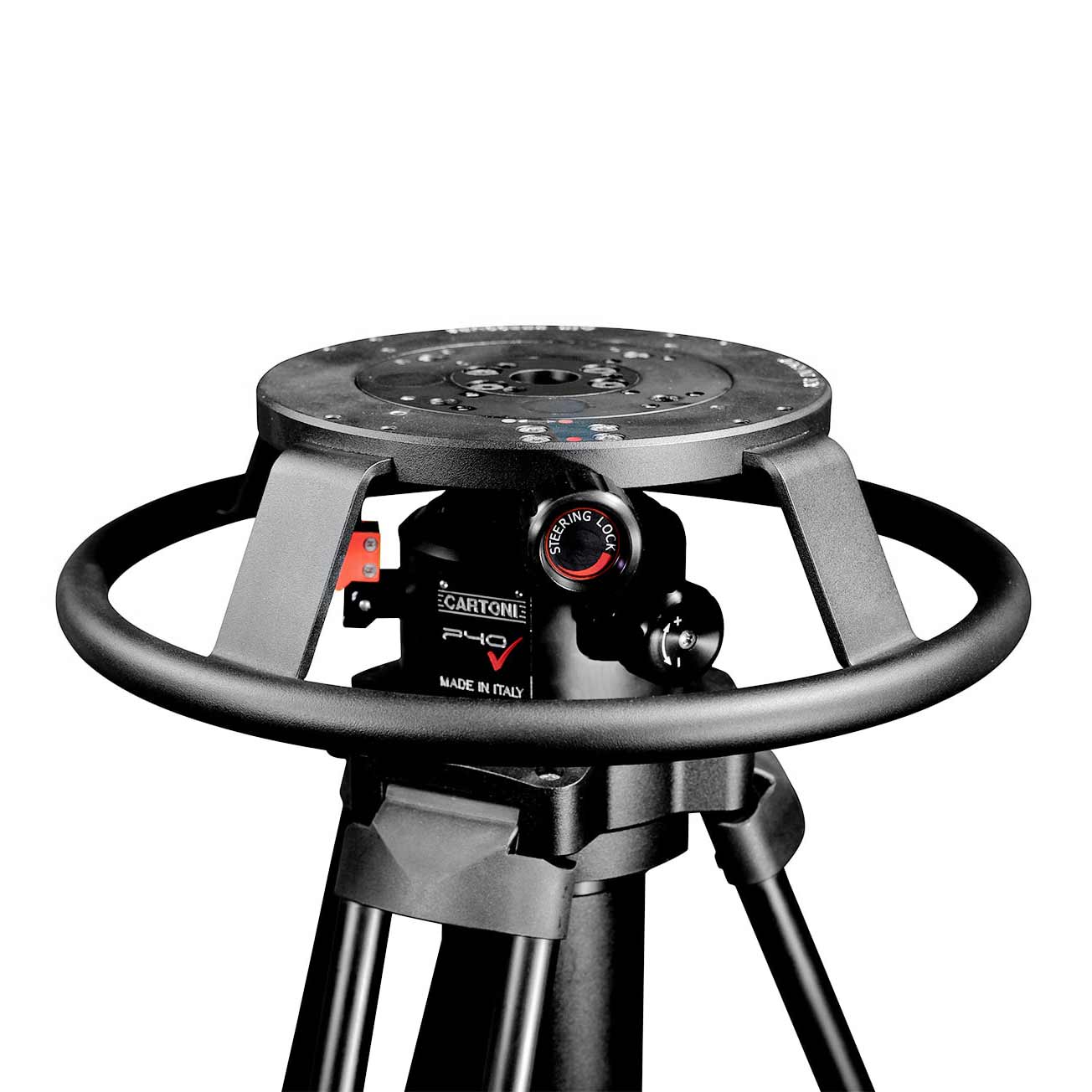

• Quick-release steering wheel and fast setup system

• Compatible with 100mm bowl heads via AH856 adapter

• Works with 620 mm track and skating assemblies
