Nanlite PavoSlim 360C RGBWW LED Light Panel – 4×2 ft Ultra-Thin High-Output Soft Light

The Nanlite PavoSlim 360C RGBWW LED Panel elevates the PavoSlim lineup with a larger 4×2 ft form factor, higher output, and expanded color control—making it an ideal soft light solution for film, broadcast, and professional video production. Delivering 370W of powerful RGBWW output, the 360C combines advanced optical engineering with a remarkably slim profile to support fast-paced, on-set workflows.

Despite its ultra-thin 0.7" (1.8 cm) housing, the PavoSlim 360C produces up to 27,060 lux at 1 m (5600K), providing broad, even illumination without sacrificing intensity. The extended 2400–12,000K variable CCT range, combined with ±150 green/magenta shift, allows precise color matching across mixed lighting environments.

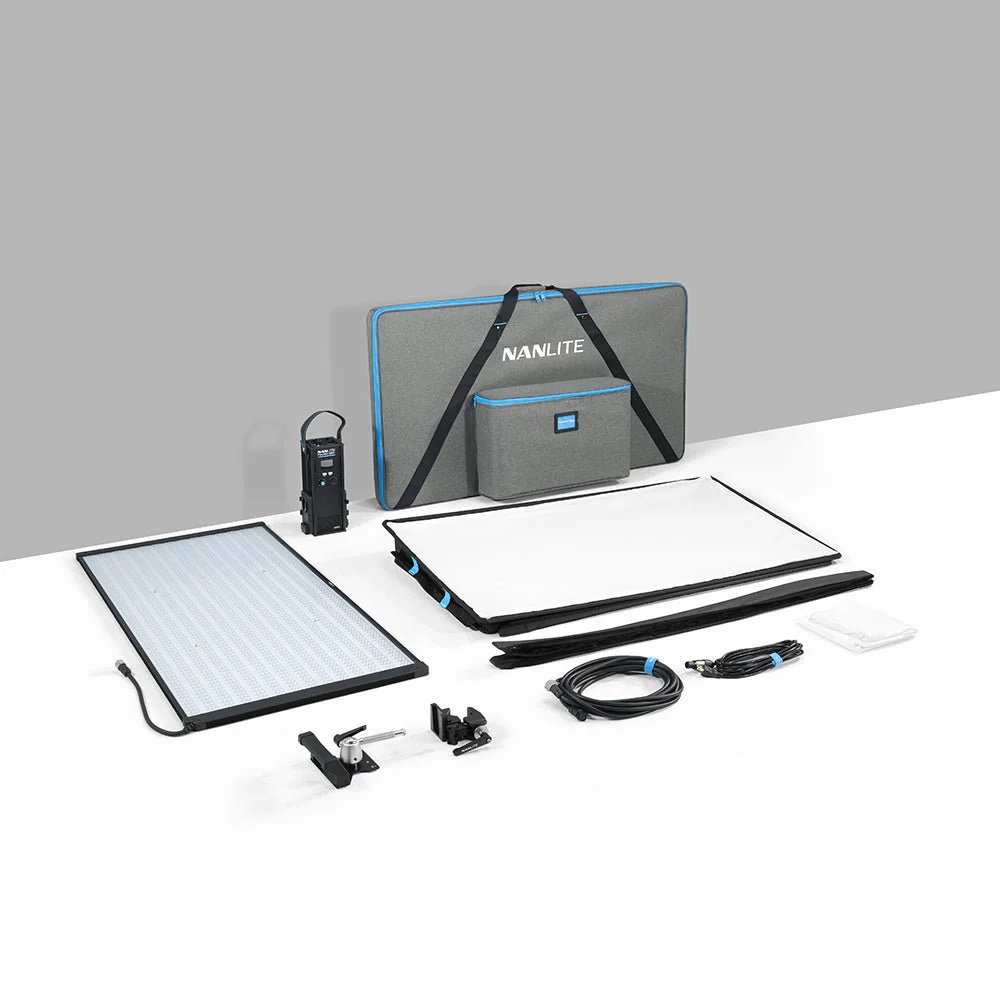

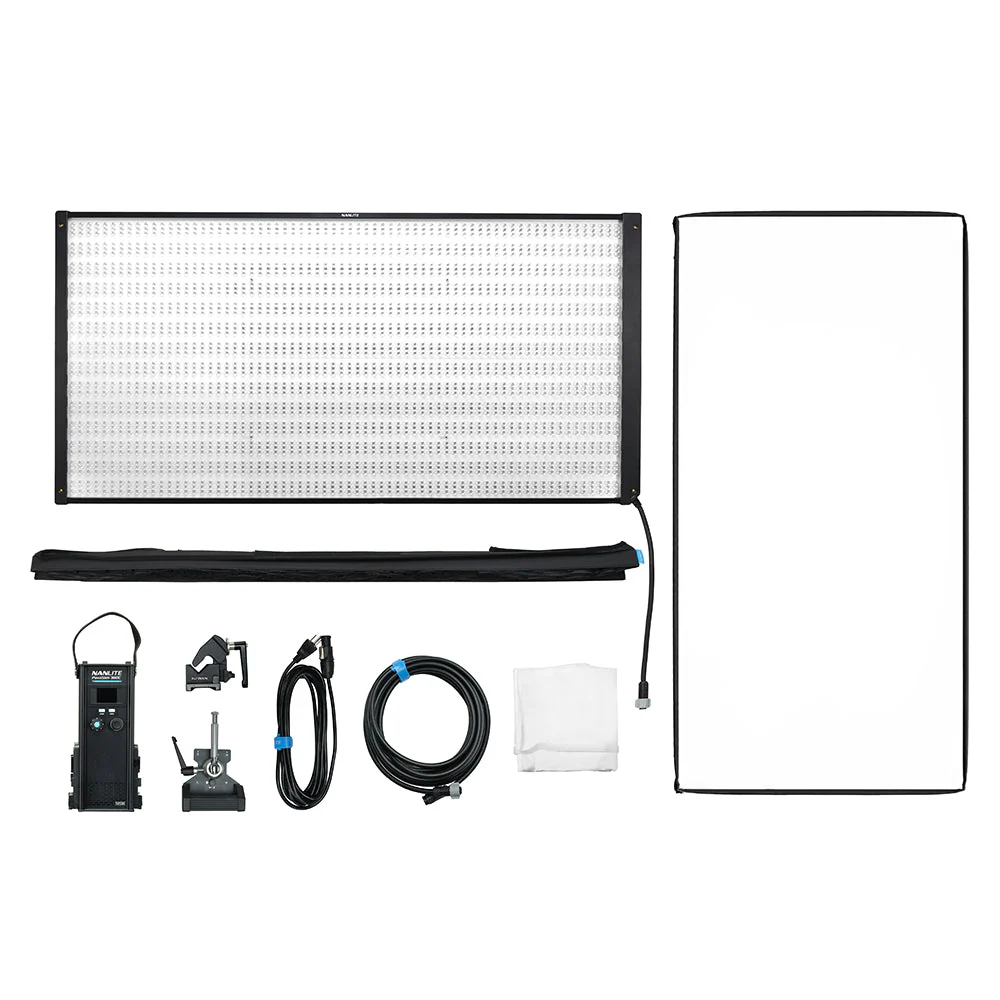

Designed for versatility, the PavoSlim 360C functions seamlessly as a key light, overhead source, or ambient fill, delivering soft, wraparound coverage for interviews, commercials, studio shoots, and location work. An included control unit supports AC power or optional V-mount batteries, while a padded carry case ensures safe transport.

---

Rapid Setup with Pop-Up Softbox

Nanlite includes a dedicated pop-up softbox to significantly reduce setup and breakdown time. The softbox can remain attached to the panel during transport, enabling faster deployment on set. Included 1.5-stop and 2.5-stop diffusion panels and an egg crate grid provide refined control over softness and spill, allowing quick adaptation to changing lighting requirements.

---

Advanced Color Control & High Output Performance

• RGBWW full-color mixing with HSI, CCT, and Gel modes

• 2400–12,000K CCT range with ±150 G/M adjustment

• 0–100% dimming in precise 1% increments

• 370W output with wide, even beam distribution

• Up to 27,060 lux at 3.3' / 1 m (5600K)

With full RGB control, users can fine-tune hue, saturation, and intensity or select from 460 built-in LEE and Rosco gel presets for consistent, repeatable color results.

---

Professional Color Accuracy

Engineered for demanding productions, the PavoSlim 360C delivers excellent color fidelity:

• CRI 96 | TLCI 97

• SSI 84 (3200K) | SSI 74 (5600K)

• TM-30 Rf 94 | Rg 100

This ensures natural skin tones, accurate color reproduction, and confidence in post-production.

---

Built-In Lighting Effects

Choose from 15 customizable lighting effects for creative and practical applications:
Flash, storm, police car, paparazzi, TV, candle/fire, fireworks, welding, explosion, hue loop, CCT loop, intensity loop, disco, bad bulb, and more.

---

Flexible Control Options

The PavoSlim 360C supports multiple professional control workflows:

• Onboard controls via included control unit

• Bluetooth control using the Nanlink app

• DMX / RDM compatibility

• LumenRadio CRMX for wireless DMX

• 2.4 GHz control with optional WS-TB-1 transmitter or WS-RC-C2 remote

---

Power, Mounting & Expandability

• 100–240V AC input for worldwide use

• Dual V-mount battery plates (batteries sold separately)

• Universal mounting holder with 5/8" baby pin and quick-release clamp

• Optional dual-panel coupler transforms two units into a 4×4 ft light source

---

Silent, Durable Design

A large rear heatsink enables fanless, silent operation, making the PavoSlim 360C suitable for sound-sensitive environments. Its magnesium alloy chassis offers strength and durability while keeping weight to 12.63 lb (5.73 kg).

---

Key Specifications at a Glance

• Output: 370W RGBWW

• Size: 4 × 2 ft

• CCT Range: 2400–12,000K

• Dimming: 0–100%

• Color Accuracy: CRI 96 / TLCI 97

• Weight: 12.63 lb

• Power: AC or V-Mount (optional)
